Pressure proportioning systems
The One Seven proportioners are electrically or hydraulically driven positive pressure proportioning systems. They are used to convey foaming agent and add it to the extinguishing water. The foaming agent is metered automatically and highly accurate on the basis of the required proportioning rate and the currently measured water volume flow. Deviations in the calculated delivery volume (e.g. due to change of discharged water or viscosity changes of the foaming agent) are detected and automatically corrected by modern sensor technology. The One Seven positive pressure proportioning systems are controlled intuitively via a modern color display with touchscreen.
All essential functions of the One Seven proportioning systems are covered by emergency programs which can be started as quickly as possible at the push of a button if necessary.
Several optional equipment is available for the One Seven positive pressure proportioners e. g. tank filling pumps, tank level indicators and changeover valves for up to three foaming agent tanks.
All proportioning systems comply with the European standard EN 16327 and are available in various performance classes with maximum flow rates of 16 l/min, 24 l/min, 32 l/min and 48 l/min.
Advantages
- Optimally calibrated ex works, no calibration effort for the user
- Automatic adjustment of proportioning rate when foaming agent is changed
- Automatic adjustment of flow volume in case of viscosity change
- Automatic priming and automatic rinsing incl. drainage
- Monitoring of all relevant parameters, functional reliability due to emergency programs
Portable proportioning system
The portable One Seven proportioning system OSP-24i-T is an electrically driven positive pressure proportioning system for conveying and admixture of foaming agent to water. It can be carried comfortably by two people and can therefore be used flexibly at any location. The construction with robust frame and protective housing allows the use under rough operating conditions. The proportioning of the foaming agent is highly precise and provides constantly optimal proportioning rates, independent of varying flow rates, pressure and backpressure. Thus, this proportioning system is a technologically modern alternative to replace Z-proportioners still used by many fire departments.
Electrically driven positive pressure proportioning systems
The electrically driven One Seven positive pressure proportioning systems are used as permanently installed systems in municipal fire engines. With a delivery rate between 0.2 l/min and 48 l/min the optimum amount of foaming agent can be added to the water for all possible firefighting operations. Optional equipment such as changeover valves for multiple foaming agent inlets, connections for tank filling pumps and level indicators, and water sensors for various flow rates are available for all positive pressure proportioning systems.
One Seven · One Seven OSP-24i-T
Portable Precision in Action: The OSP-24i-T Electric Direct Injection Foam Proportioning System
Highest dosing accuracy with zero calibration effort. Supplies up to 6 nozzles simultaneously with wetting agent: flexible, automatic, and fail-safe. When using appropriate foam nozzles, heavy foam and medium foam can also be produced.
Certified Quality & Maximum Reliability
- 01In accordance with DIN EN 16327 (DZA 2400/0.1-1.0)
- 02IP65 protection rating (fully protected against dust and water jets)
- 03Quality Management ISO 9001 & ISO 45001
- 04Made in Germany (Luckenwalde), 25+ years of CAFS technology leadership
Comparing inline eductors & OSP-24i-T
- Venturi Proportioner Principle
- OSP-24i-T Proportioner
- High pressure losses in the hose system
- Maximum pressure loss of 1.0 bar
- Inaccuracies Due to Temperature Fluctuations
- Automatic adjustment in response to changes in the foaming agent using modern sensor technology
- High foaming agent consumption
- Economical proportioning rates starting at 0.3% (Class A)
- Manual calibration required
- No calibration effort necessary: fully automatic control
Technical highlights OSP-24i-T
5-inch color displayIntuitive operation & live sensor monitoring during operations.
High-Performance Brass plunger pumpSuitable for viscosities up to 500 mPa·s.
Maximum Fail-SafetyAutomatic venting, flushing, draining & emergency override.
Mobile DeploymentRobust aluminum protective frame, ergonomically carryable by 2 persons (approx. 45 kg).Technical data OSP-24i-T
- Nominal flow rate
- 100 ... 2,400 l/min
- Pressure loss
- Max. 1.0 bar (at nominal flow rate)
- Proportioning rate
- 0.1 ... 9.9 %, steplessly adjustable
- Flow rate
- 0.3 ... 24 l/min at 10 bar
- Voltage / Power consumption*
- 24 V DC / Max. 60 A (at max. working pressure)
- Dimensions / Weight
- 697 x 382 x 442 mm / approx. 45 kg (IP65)
* Dependent on type of foaming agent

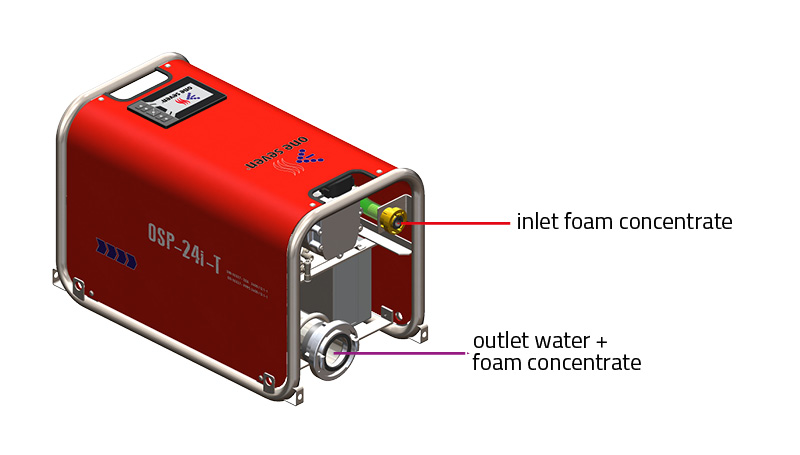

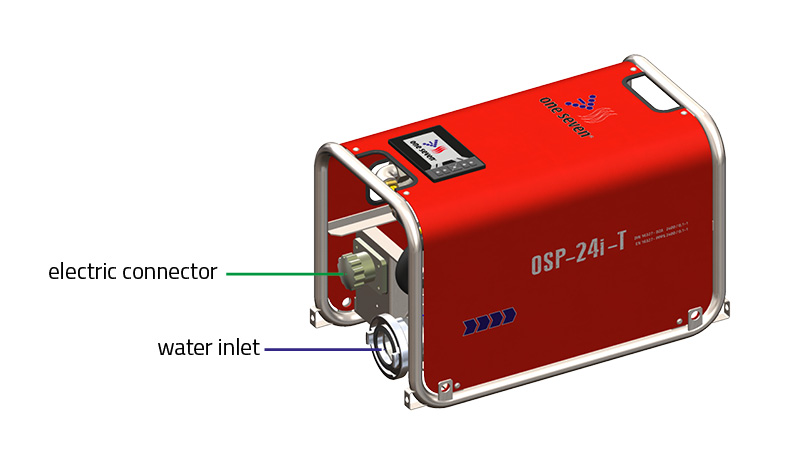

Connections OSP-24i-T
Download datasheet OSP-24i-T (PDF)
